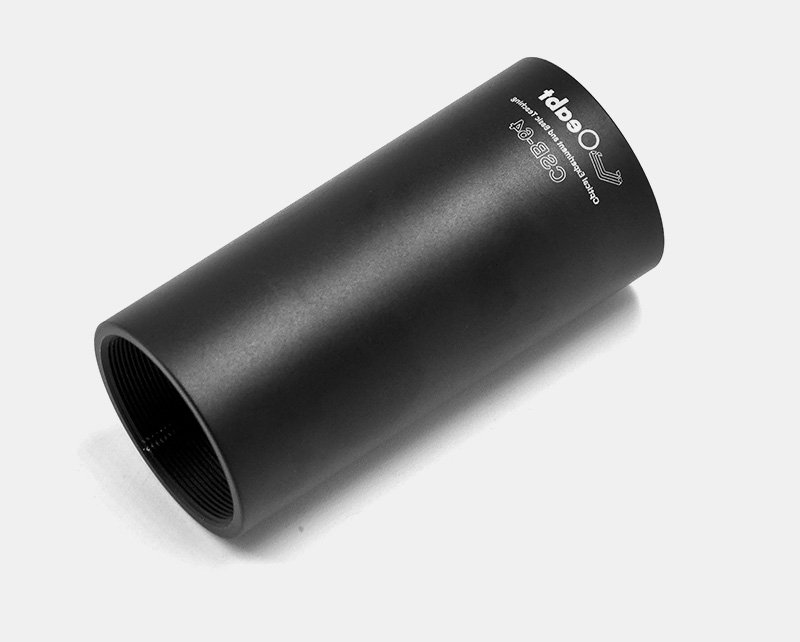

CSB Series Ø1 Inch Female-to-Female Lens Tube

Product Description

• Can be used as a CCD camera extension tube with different diameter adapters (C-mount adapter required).
• Facilitates construction of multi-component optical systems; multiple optical elements can be mounted in a single tube using several retaining rings.
• Directly compatible with Ø1 inch lens tubes via various connectors.
• Accepts Ø25.4 mm optical elements and is SM1 compatible.
• Features a ring-type design on both ends for use with male-to-female lens tubes.

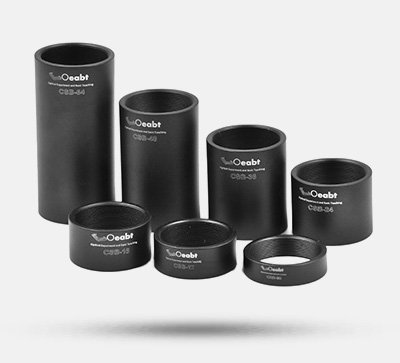

These lens tubes are ideal for building compact optical cage systems. They can hold one or more optical elements. The depth can be easily set using our retaining rings to separate and secure optical elements. These stackable lens tubes are compatible with all Ø25 mm threaded components. Each tube is supplied with one retaining ring; additional rings can be purchased separately for system assembly.

Technical Description

These lens tubes are ideal for building compact optical cage systems. They can accommodate one or more optical elements. The depth can be easily adjusted with our retaining rings to separate and fix optical elements. These stackable lens tubes are compatible with all Ø25 mm threaded components. Each lens tube comes with one retaining ring, and extra rings are available for purchase to build custom systems.

Assembly

Application Examples

Engineering Drawings

CSA-48 Engineering Drawing
