Name: CPL-TILT Helium-Neon Laser Mount
SKU: 3516
Availability: InStock

Product Description

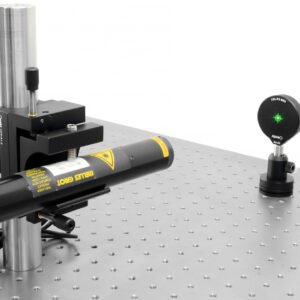

For drift-free positioning of helium-neon lasers and other cylindrical objects.
Two-axis adjustment: adjustment knobs provide ±4.5° pitch and ±4.5° yaw control.
Compatible with cylindrical components ranging from Ø25.4mm to Ø44.5mm.
Counterbores at the bottom for easy horizontal or vertical mounting and fixing to platforms.

The mount offers two-axis precise angle adjustment and is suitable for drift-free positioning of cylindrical laser heads (Ø25.4mm-44.5mm) and other cylindrical objects. To prevent wobbling and vibration, it can be firmly fixed to the two contact surfaces formed by the U-shaped groove via side nylon set screws.

Model	CPL-TILT
Dimensions	96.563.463.1mm (excluding adjusters)
Adjustment Range	±4.5° pitch, ±4.5° yaw
Adjustment Precision	M6*0.35 adjustment screws, 10.7mrad/rev
Clamping Diameter	Ø25.4-44.5mm
Thread Type	Ø6.3mm counterbores
Weight	510.0g
Material	7075 aluminum alloy

Technical Description

The high-resolution adjustment knobs provide ±4.5° pitch and ±4.5° yaw control, with an adjustment precision of 10.7mrad/rev, enabling smooth adjustment, low cross-coupling, and precise beam placement. It also features hardened and polished ball bearings and a U-shaped groove kinematic pivot to ensure repeatable angular orientation and stability

The bottom can be horizontally or vertically mounted to other adjustment mounts, rod clamps, or platforms through two Ø6.3mm counterbores with a spacing of 50*50mm.
