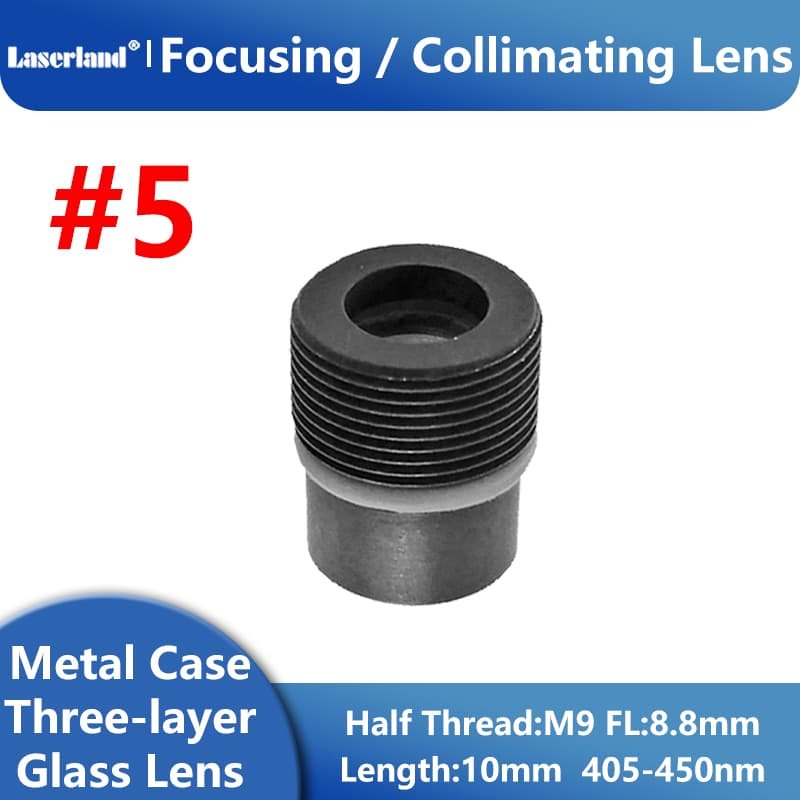

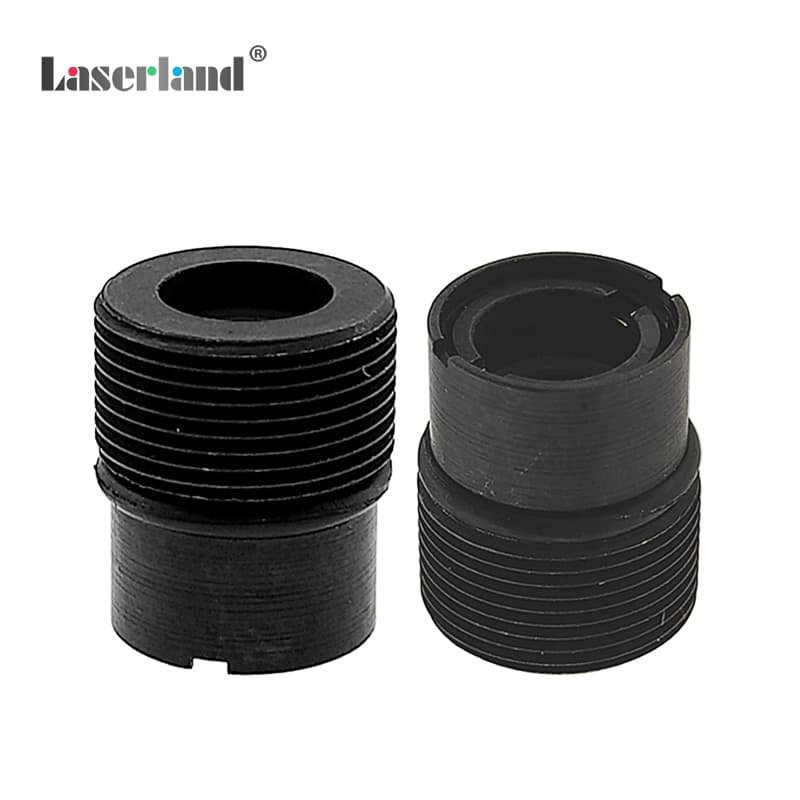

#5 405nm-450nm M9 P0.5 FL8.8mm Length 10mm Focal Collimating for Glass Lens Laser Diode
$6.00
#5 405nm-450nm M9 P0.5 FL8.8mm Length 10mm Focal Collimating for Glass Lens Laser Diode
#5 405nm-450nm M9 P0.5 FL8.8mm Length 10mm Focal Collimating for Glass Lens Laser Diode
Name:laser lens
Mode:16051005
Size:Half Thread M9x0.5-10.5
Effective Focal Length:8.8mm
Distance from laser diode to lens:5.8mm
Effective Clear Aperture:R17.0/R26.5
Center Thickness of Lens:2.66±0.02
Lens Edge Thickness:1.636
Operating wavelength:405nm、445nm、450nm
