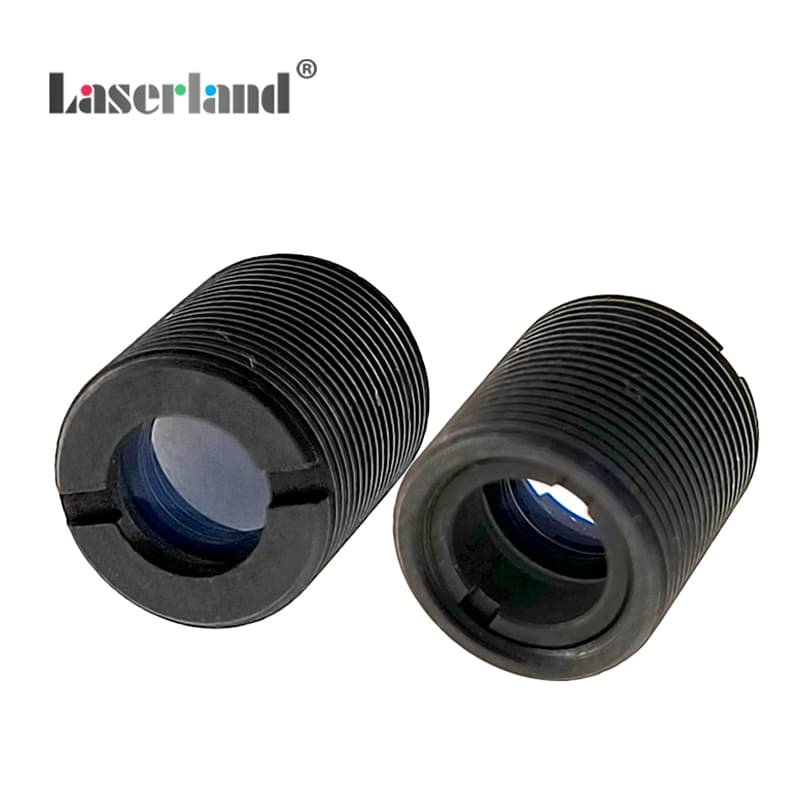

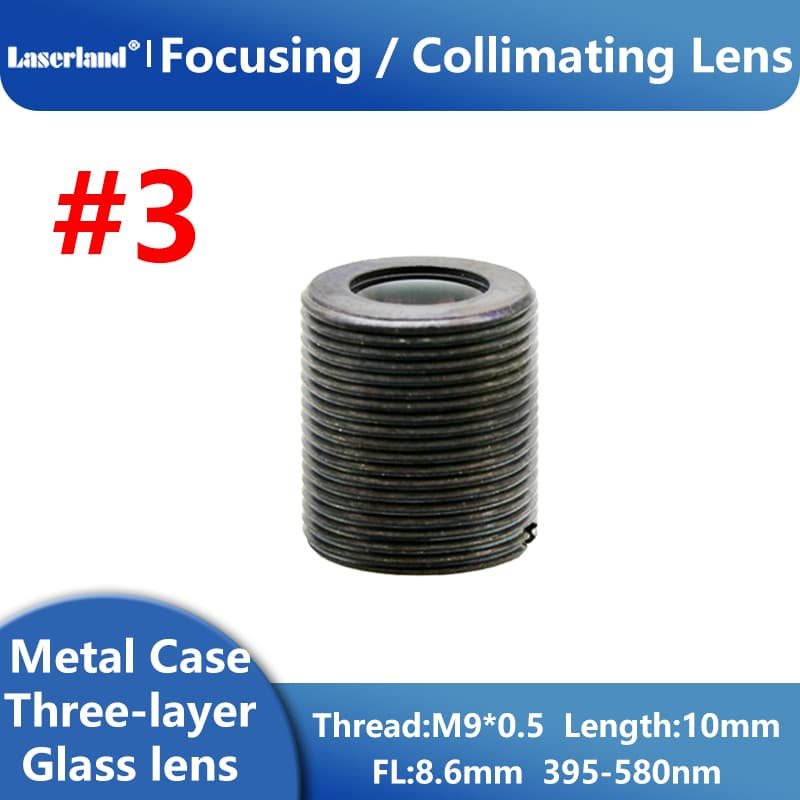

#3 395nm-580nm M9 P0.5 FL8.6mm Length 9.8mm Focal Collimating for Laser Diode
$6.00
#3 395nm-580nm M9 P0.5 FL8.6mm Length 9.8mm Focal Collimating for Laser Diode
#3 395nm-580nm M9 P0.5 FL8.6mm Length 9.8mm Focal Collimating for Laser Diode
Mode:13010003
Size:L9.8mm*M8.9mm
Effective focal length:8.6mm
Distance from laser diode to lens:5.3mm
Effective clear aperture:R17.0/R26.5
Center thickness of lens:2.66±0.02
Lens edge thickness:1.636
Operating wavelength:405~450nm
