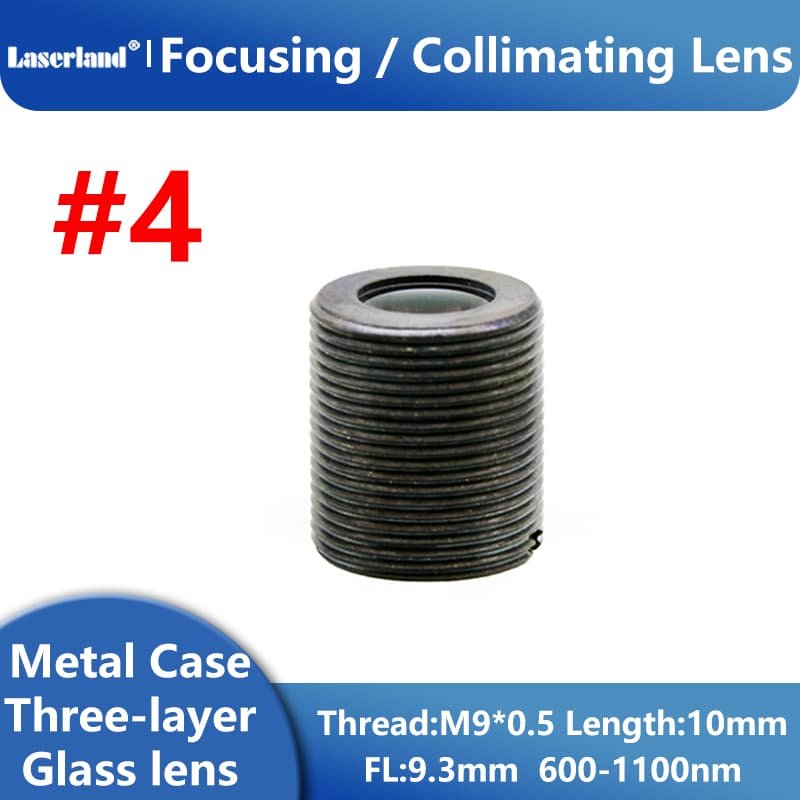

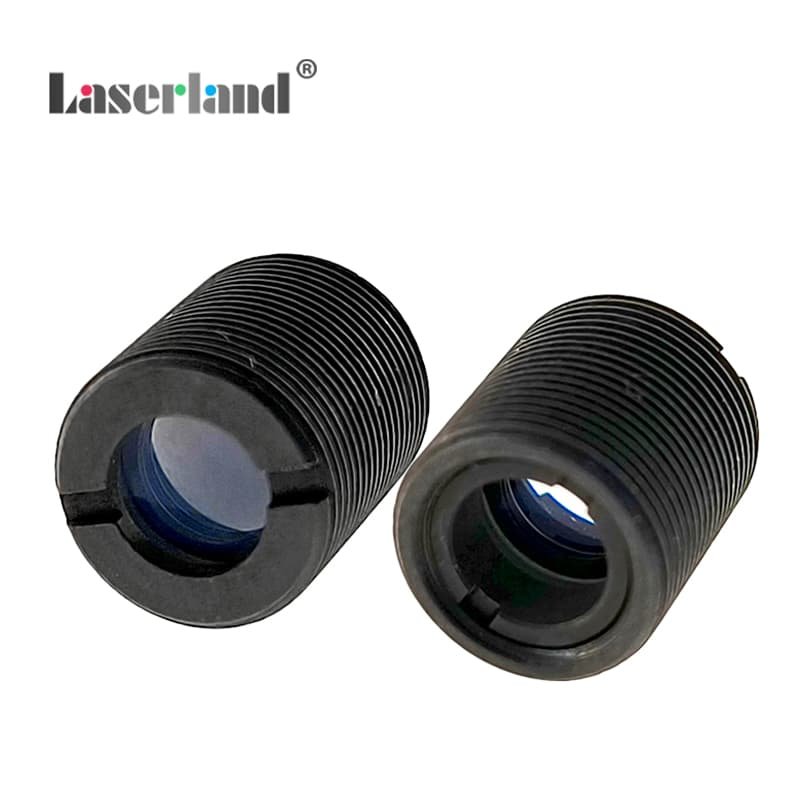

#4 600nm-1100nm M9 P0.5 FL9.3mm Length 10mm Focal Collimating for Red IR Laser Diode
$6.00
#4 600nm-1100nm M9 P0.5 FL9.3mm Length 10mm Focal Collimating for Red IR Laser Diode
#4 600nm-1100nm M9 P0.5 FL9.3mm Length 10mm Focal Collimating for Red IR Laser Diode
three layers of lens w/ high permeability
Size:L9.8mm*M8.9mm
Effective focal length:9.3mm
Distance from laser diode to lens:5.9mm
Effective clear aperture:R17.0/R26.5
Center thickness of lens:2.66±0.02
Lens edge thickness:1.636
Operating wavelength:635~650nm
