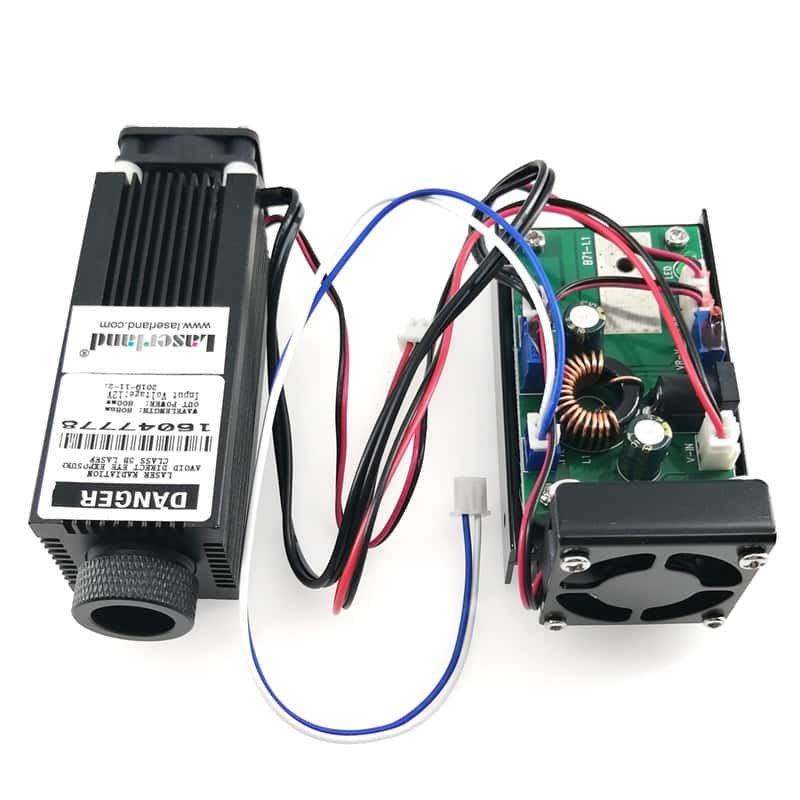

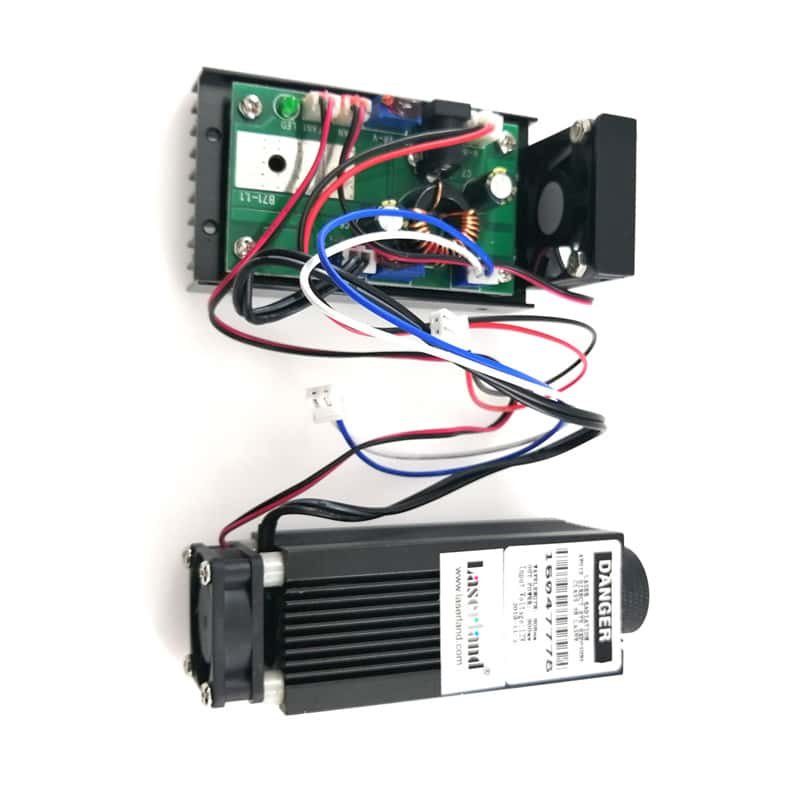

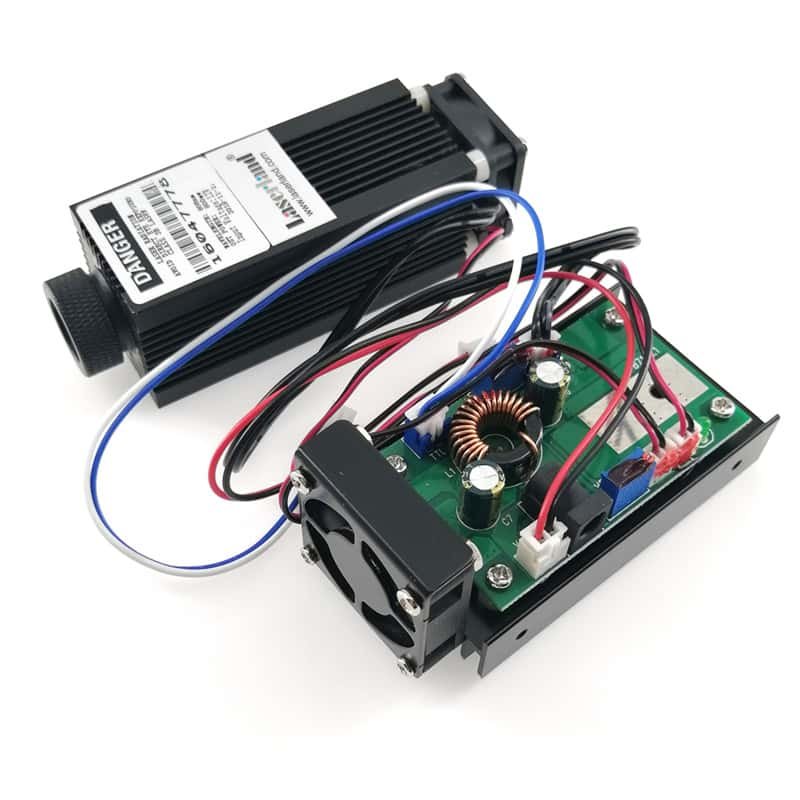

3380 808nm 0.8W 1.6w 12V Laser Module with TTL

Name: 3380 808nm 0.8W 1.6w 12V Laser Module with TTL
SKU: 3380-808D
Availability: InStock

Price range: $87.50 through $11,081,003.00

3380 808nm 0.8W 1.6w 12V Laser Module with TTL

Output

Clear

SKU: 3380-808D Categories: 808nm Laser Module, Laser Modules

3380 808nm 0.8W 1.6w 12V Laser Module with TTL

Something buyer need to know:

This laser module can not work for a long time if there is no cooling device to keep the laser working under 30?.
Please add a 12VDC power to this laser module. Red wire connects?+? pole; Black wire connects ?-? pole. TTL 3-5V on, 0V off. If you don’t use TTL, please just leave the blue and white wire.
This is a focusable laser module. Please do not take off the lens adjustable part off to avoid dust.
There is a potentiometer on the driver. You can turn it to adjust the power of the laser. Turn Clockwise to increase the laser power. Otherwise to decease the power. But the current can not surpass the current we have set up.
Please wear 808nm laser protection goggles to protect your eyes when working on this module.

Note:

The modules are tested and the output power are measured by laser power meter before sending out.

Please don’t compare the power of this one with a none-measured laser.

If you doubt the output, please have the laser you recieved checked by laser power meter.

If there is any problem, please feel free to contact us. We will solve the problem asap.

It is IR laser,the laser light cannot be seen by human bare eyes with only using DDC/infrared camera get it.
