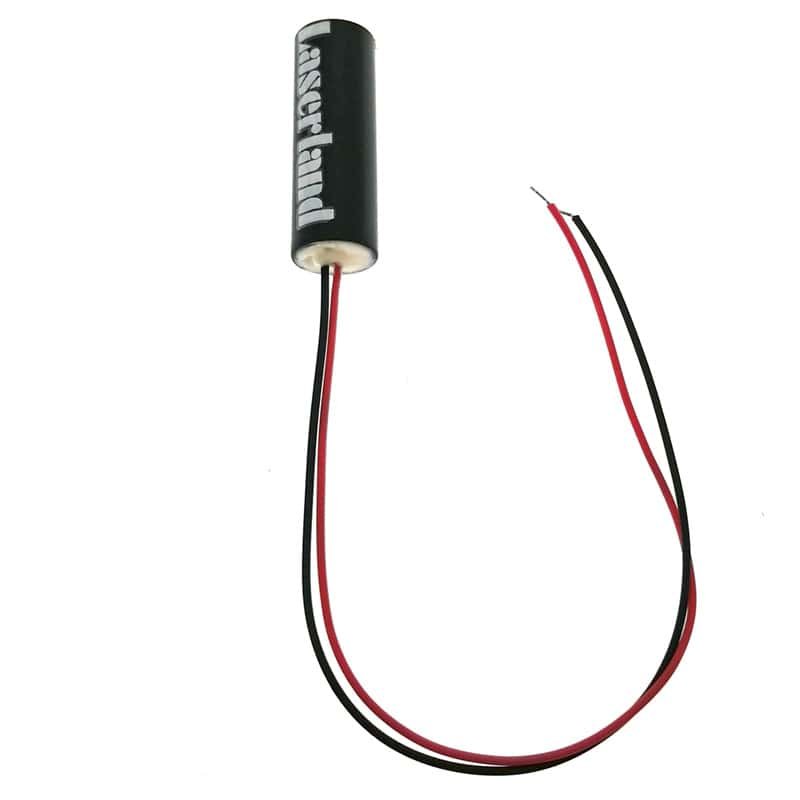

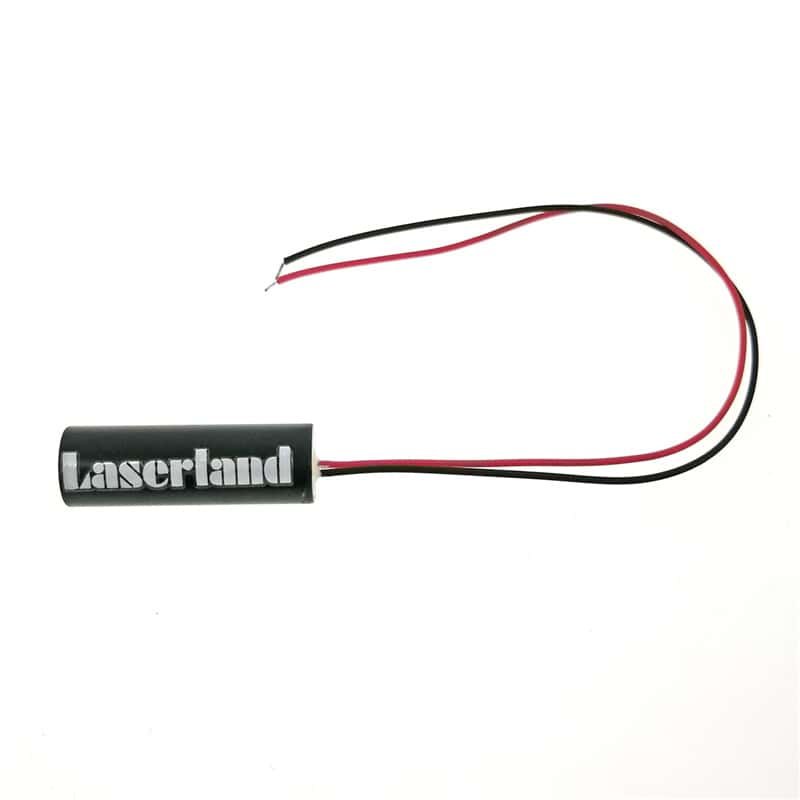

10*30mm 808nm 10mW 100mW Dot Laser Module DC 3V

10*30mm 808nm 10mW 100mW Dot Laser Module DC 3V

Specifications

Size: φ 10 × 30mm(we have other size, contact us for it.)

Material: Copper

Surface Treatment / Color: Copper

Life: continuous output and life> 5,000 hours

Output wavelength: 808nm / ± 5nm

Output power: 10mw /100mW

Range: 200M

Spot shape / Diameter:Oblong spot

Circuit control:  APC circuit

Operating Voltage: DC  3V

Working Current:  <80mA

Conductor: 150MM red and black electronic circuit

Working temperature: -10°C ~ +60 °C

Storage temperature: -20 °C ~ +60 °C

Application module:

1 can be used for sight with positioning.

2 can be used for laser testing tools.

3 can be used to locate concentricity.

4 can be used to locate medical equipment, beauty.

5 can be used to produce a signal device.
