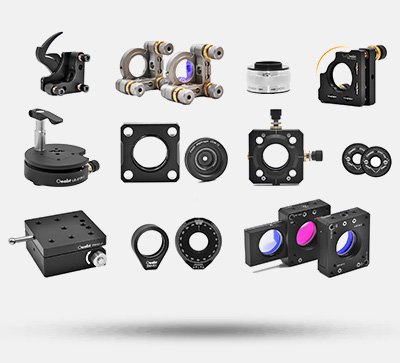

OMK-OM1 Ø1-inch Optical Mount Kit Combination

Product Description

• Basic mechanical kit: Ø1-inch optical mount kit
• Multiple combination options available
• Metric version

This kit includes the most commonly used adjustable, fixed, translation, and rotation mounting components for Ø1inch optical elements, meeting the needs of most basic optical experiments. The mounts are equipped with various mounting options including smooth bores, SM threaded holes, and adjustable clamping diameters for maximum flexibility and practicality.

OMK-OM1 Kit List



Product Name	Model	Quantity	Unit
2-Axis Adjustable Mirror Mount	MK100-A	5	pcs
3-Axis Adjustable Mirror Mount	OST-K100	5	pcs
Flip Mount	FM40-A	5	pcs
Prism Tilt Adjustment Mount	LB-XYR-C	2	pcs
Adjustable Self-Centering Mount	TOC-X	2	pcs
Adjustable Iris Diaphragm + 30 mm Threaded Cage Plate	CDM-12J30	2	pcs
Filter Mount (with WO-X2 slide)	CWO-X2	2	pcs
Ø1-inch Fixed Lens Mount	SM-R1	10	pcs
Rotation Mount	SM-RP1	5	pcs
Cage XY Translation Mount	CXY1-M	5	pcs
High-Precision Extending Sleeve	SM-Z4	5	pcs
Adjustable Collimation Adapter	OAD-10F	2	pcs
Adjustable Collimation Adapter	OAD-12F	2	pcs

Technical Description

1. The kit includes the most frequently used adjustable, fixed, translation, and rotation mounting components for Ø1inch optical elements. These mounts feature various mounting styles: smooth bores, SM threaded holes, and adjustable clamping diameters.



Product Name	Model	Quantity	Unit
2-Axis Adjustable Mirror Mount	MK100-A	5	pcs
3-Axis Adjustable Mirror Mount	OST-K100	5	pcs
Flip Mount	FM40-A	5	pcs
Prism Tilt Adjustment Mount	LB-XYR-C	2	pcs
Adjustable Self-Centering Mount	TOC-X	2	pcs
Adjustable Iris Diaphragm + 30 mm Threaded Cage Plate	CDM-12J30	2	pcs
Filter Mount (with WO-X2 slide)	CWO-X2	2	pcs
Ø1-inch Fixed Lens Mount	SM-R1	10	pcs
Cage XY Translation Mount	CXY1-M	5	pcs
High-Precision Extending Sleeve	SM-Z4	5	pcs
Rotation Mount	SM-RP1	5	pcs
Adjustable Collimation Adapter	OAD-10F	2	pcs
Adjustable Collimation Adapter	OAD-12F	2	pcs
