PFC Series Stainless Steel Spacers

Product Description

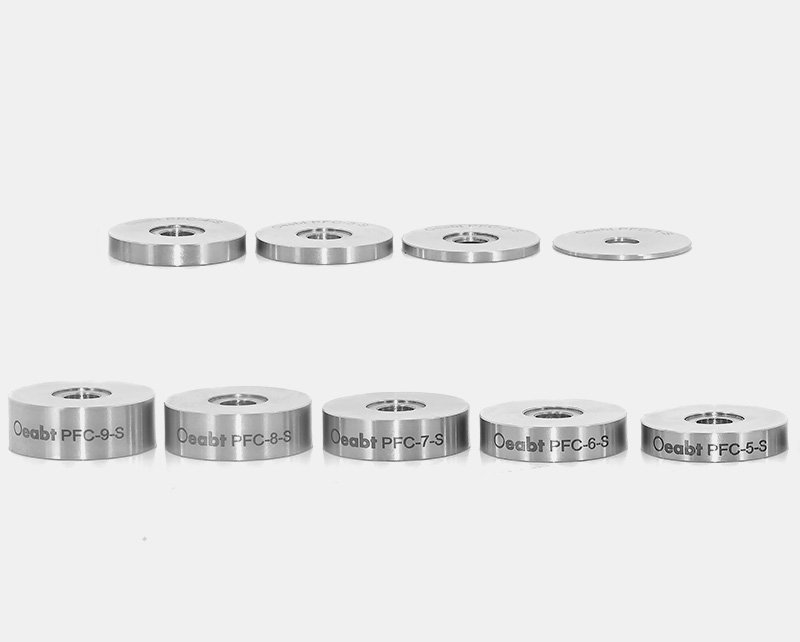

• Spacers for Ø25mm rods, constructed of non-magnetic stainless steel.

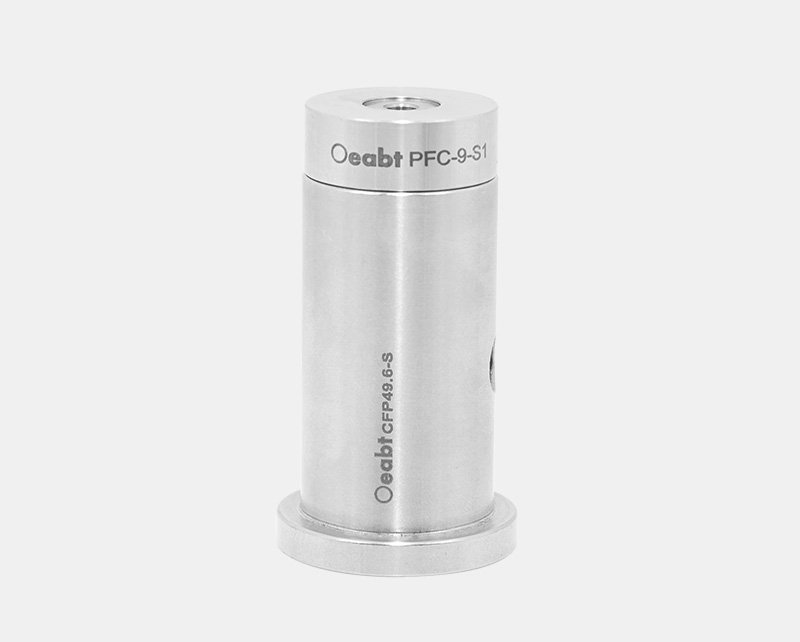

• Used for stacking to increase the height of rod columns.
• Optional styles: With M4/M6 threaded holes or Ø4mm, Ø6mm through holes.
• Groove design at the top and bottom enhances installation stability.

The PFC series rod spacers are used to gain additional height for Ø25mm or Ø1-inch series rods without reducing structural rigidity.

General Parameters	Specifications
Diameter	Ø25mm
Material	304 stainless steel



PFC-S Series	Height	Center Hole Diameter	Weight
PFC-1-S	1mm	∅6mm through hole	3.5g
PFC-2-S	2mm	∅6mm through hole	6.8g
PFC-3-S	3mm	∅6mm through hole	10.6g
PFC-4-S	4mm	∅6mm through hole	14.0g
PFC-5-S	5mm	∅6mm through hole	17.7g
PFC-6-S	6mm	∅6mm through hole	21.1g
PFC-7-S	7mm	∅6mm through hole	24.9g
PFC-8-S	8mm	∅6mm through hole	28.4g
PFC-9-S	9mm	∅6mm through hole	32.1g



PFC-S1 Series	Height	Center Hole Diameter	Weight
PFC-1-S1	1mm	∅4mm through hole	3.5g
PFC-2-S1	2mm	∅4mm through hole	7.1g
PFC-3-S1	3mm	∅4mm through hole	10.8g
PFC-4-S1	4mm	∅4mm through hole	14.6g
PFC-5-S1	5mm	∅4mm through hole	18.0g
PFC-6-S1	6mm	∅4mm through hole	21.8g
PFC-7-S1	7mm	∅4mm through hole	25.7g
PFC-8-S1	8mm	∅4mm through hole	29.4g
PFC-9-S1	9mm	∅4mm through hole	33.1g

PFC-S2 Series	Height	Thread Type	Weight
PFC-12.5-S2	12.5mm	One end M4, one end M6	40.6g
PFC-19-S2	19mm	One end M4, one end M6	64.3g
PFC-25-S2	25mm	One end M4, one end M6	86.3g
PFC-38-S2	38mm	One end M4, one end M6	136.2g
PFC-50-S2	50mm	One end M4, one end M6	182.3g



PCA-S Series	Height	Thread Type	Weight
PCA3-S	30mm	One end M4, one end M6	21.5g
PCA4-S	40mm	One end M4, one end M6	30.0g
PCA5-S	50mm	One end M4, one end M6	39.3g
PCA6-S	60mm	One end M4, one end M6	47.3g
PCA15-S	150mm	One end M4, one end M6	126.1g
PCA30-S	300mm	M6 at both ends	254.3g
PCA50-S	500mm	M6 at both ends	432.4g

Technical Description

The PFC series rod spacers are used to gain additional height for Ø25mm or Ø1-inch series rods without reducing structural rigidity. They can provide strong support in optical devices. Through the threaded holes or through holes at the center of the spacers, studs can pass through the matching threads of the components from the top or bottom for connection.

Multiple specifications and sizes available.

Assembly

Manual assembly and installation

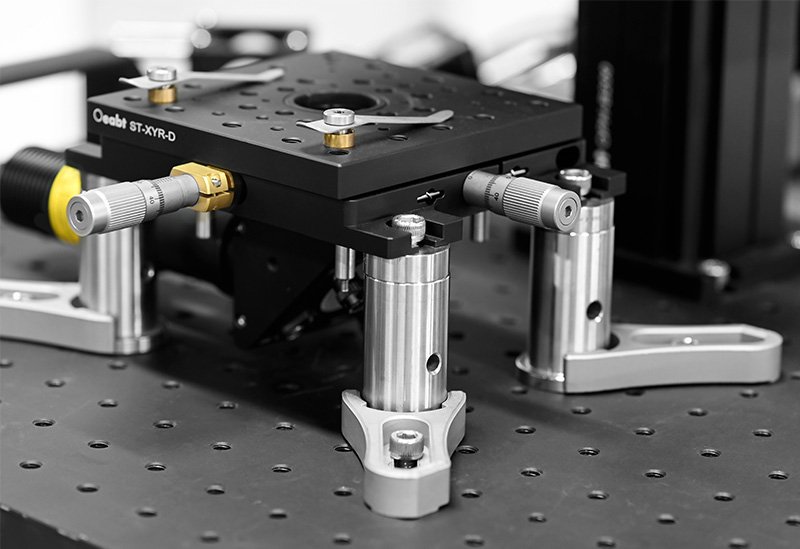

Application Example
