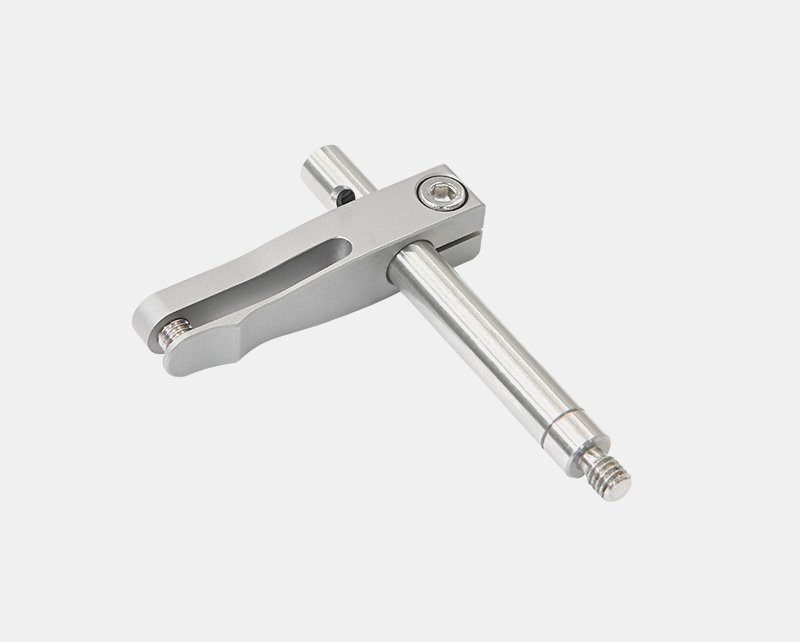

VPRK1-A Ø6mm adjustable clamping pressure arm

Product Description

• Coupling rod Ø6mm, with M4 threads at both the top and bottom ends;
• Provides clamping force for adjustment frames with platforms;
• The arm clamp can hold optical components up to 41.8 mm in diameter;
• The extension rod can be extended to increase the maximum height of the clamped optical element;
• Heat-treated 304 stainless steel material;

The arm height is adjustable, and the flexible design with fixed optical elements enables clamping optical components with a maximum height of 41.8 mm.

model	VPRK1-A
Rod height	Ø6*50.8mm
Clamping size	optical elements with a diameter ≤41.8 mm
Type of threaded hole	At M4*2
weight	23.4g
material quality	Heat Treatment of 304 Stainless Steel

technical description

(1) The VPRK1-A press arm can secure optical components onto an adjustable frame equipped with a platform. The press arm height is adjustable and features a flexible design for fixing optical components, capable of clamping optical components with a maximum height of 41.8 mm. Height adjustment and optical component positioning locking are achieved using a 2.5 mm/2.0 mm hex key.

(2) Additionally, the M4 bolt at the base of the pressing arm facilitates direct mounting on the platform, while the M4 internal thread at the top enables continuous stacking of pressing arms.

(3) Utilizing a full stainless steel heat treatment process, the VPRK1-A compression arm not only exhibits excellent corrosion resistance and wear resistance, but also minimizes temperature-related hysteresis effects in environments with significant thermal fluctuations, ensuring long-term stable performance.

Assembly

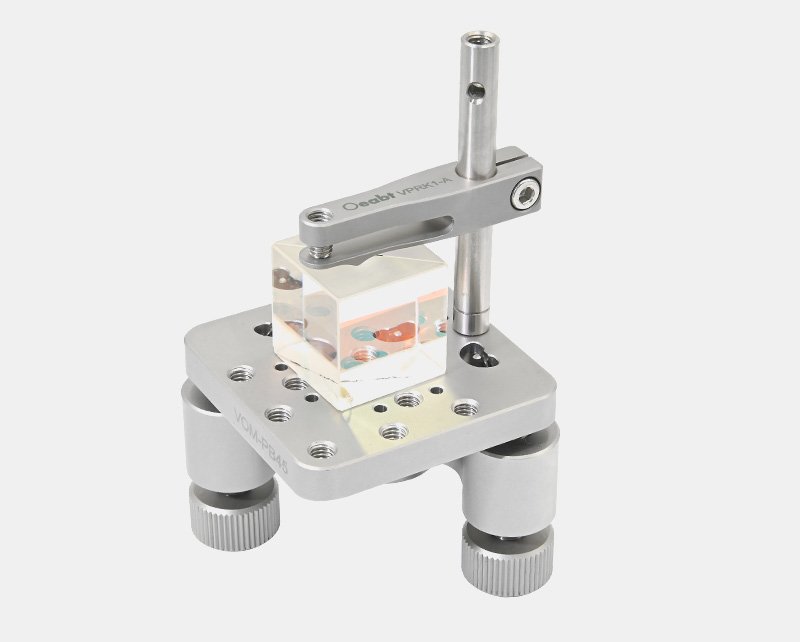

Application Examples

Engineering Drawings

VPRK1-AEngineering Drawing
