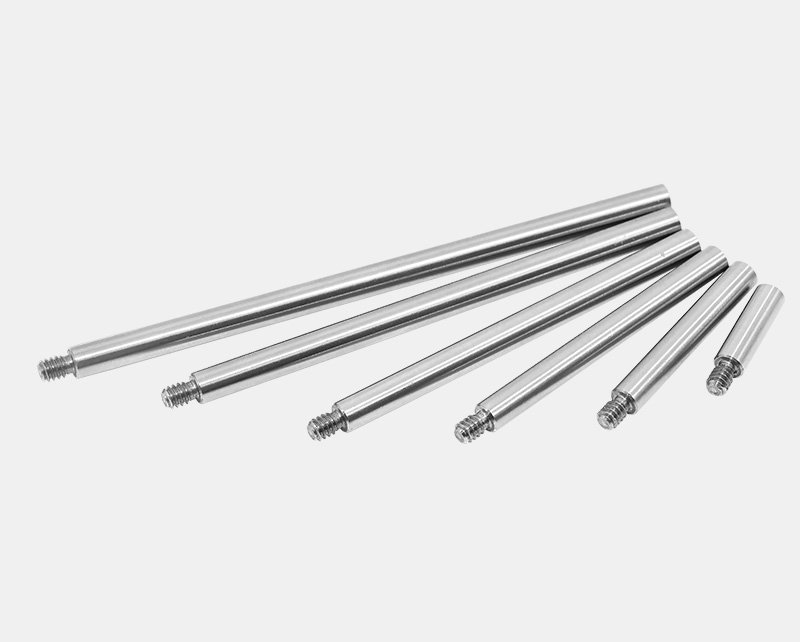

SPCM‑E Series Ø4 mm Miniature Cage Rods - Image 3

SPCM‑E Series Ø4 mm Miniature Cage Rods - Image 4

SPCM‑E Series Ø4 mm Miniature Cage Rods

Name: SPCM‑E Series Ø4 mm Miniature Cage Rods
SKU: 4438
Availability: InStock

Price range: $2.00 through $4.00

Model

Clear

SKU: N/A Categories: 16mm Cage Systems, Cage System Construction, Cage Systems

Description
Additional information

Product Description

Ø4mm stainless steel cage rods
For 16mm miniature cage systems
Non-detachable 4-40 stud on one end
Length range from 1/2 inch to 3 inches
Rods can be continuously spliced for extended length

The Ø4mm rods are fundamental building blocks for constructing optical systems. Multiple cage rods can be joined together and applied to 16mm cage systems, facilitating the setup of experimental applications.

Model	SPCM-E0.5	SPCM-E1	SPCM-E1.5	SPCM-E2	SPCM-E2.5	SPCM-E3
Diameter	∅4mm	∅4mm	∅4mm	∅4mm	∅4mm	∅4mm
Length	0.5 inch	1 inch	1.5 inches	2 inches	2.5 inches	3 inches
Thread Type	4-40 stud on one end, 4-40 threaded hole on the other	4-40 stud on one end, 4-40 threaded hole on the other	4-40 stud on one end, 4-40 threaded hole on the other	4-40 stud on one end, 4-40 threaded hole on the other	4-40 stud on one end, 4-40 threaded hole on the other	4-40 stud on one end, 4-40 threaded hole on the other
Weight	0.9g	2.0g	3.2g	4.5g	5.9g	7.0g
Material	304 Stainless Steel	304 Stainless Steel	304 Stainless Steel	304 Stainless Steel	304 Stainless Steel	304 Stainless Steel

Technical Description

Specifications

Length: 2.5 inches

(1) The Ø4mm rods are fundamental building blocks for constructing optical systems. These cage rods are commonly used as guide rods for cage plates, featuring a non-detachable 4-40 stud on one end and a 4-40 threaded hole on the other. This design allows multiple cage rods to be joined together for use in 16mm cage systems, simplifying the construction of experimental setups.

(2) Available in a wide range of length specifications.
