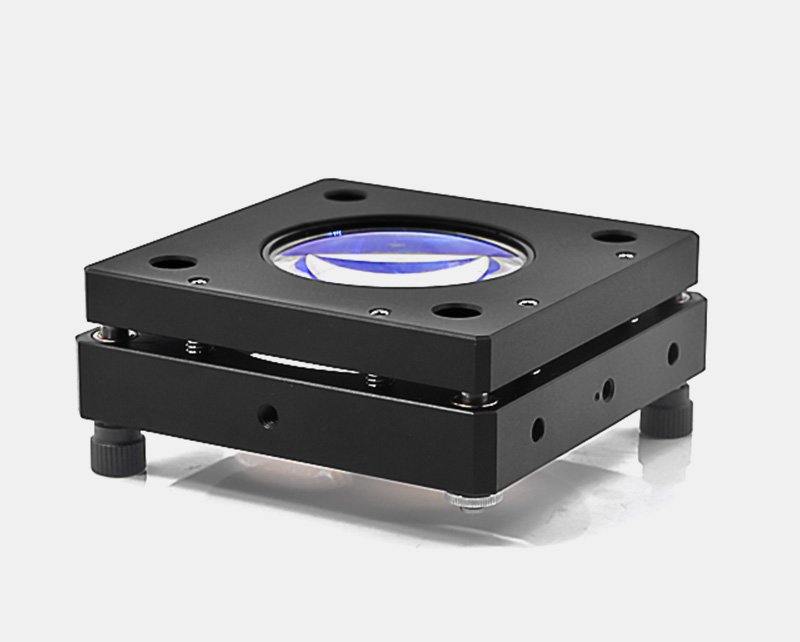

MC Series 60mm Cage Adjustable Mirror Mount

Product Description

• Compatible with Ø2inch (Ø50.8mm) optical components on the optical axis; works with 60mm cage systems
• Provides ±3°tilt and pitch adjustment range
• Through holes for mounting Ø6mm cage rods
• M4 threaded holes on three sides for post mounting

The mount enables ±3° of pitch and tilt adjustment for optical components. Adjustment is driven by three 100 TPI (Threads Per Inch) screws for smooth, highresolution motion. These adjusters feature locking collars and removable knobs.



Item	Cage Adjustable Mirror Mount	Cage Adjustable Mirror Mount
Model	MCT2	MCS2A
Dimensions	88.988.945.2mm	88.988.945.2mm
Bore	SM2 (2.035”40)	Ø50.9mm
Adjustment Range	±3° pitch & tilt	±3° pitch & tilt
Throughhole Spacing	Ø6.02mm, 60×60mm	Ø6.02mm, 60×60mm
Weight	295.9g	295.5g
Material	7075 Aluminum Alloy	7075 Aluminum Alloy

Technical Description

(1) The mount provides ±3° of pitch and tilt adjustment for optical components. Three 100 TPI adjustment screws deliver smooth, highresolution positioning. All adjusters include locking collars and removable knobs.

(2) MCT2 has SM2 (2.035”40) threads and uses one SM2 retaining ring plus one Ø2inch spacer to secure optics. By contrast, MCS2A holds optics with nylontipped setscrews, tightened with a 2mm hex wrench or ballhead screwdriver.

(3) Both mounts accept Ø2inch (Ø50.8mm) optics. MCT2 accommodates thin optics (thickness ≤6.5mm). MCS2A is designed for thicker optics (minimum thickness 5mm).

(4) The mount has four Ø6mm through holes compatible with PCMS cage rods. Four side locking screws secure the rods, tightened with a 1.5mm hex wrench or ballhead screwdriver.

(5) Three sides each have M4 threaded holes for post mounting in freespace setups.



Assembly

Application Examples

Engineering Drawings

MC-T2 Engineering Drawing

MC-S2A Engineering Drawing
