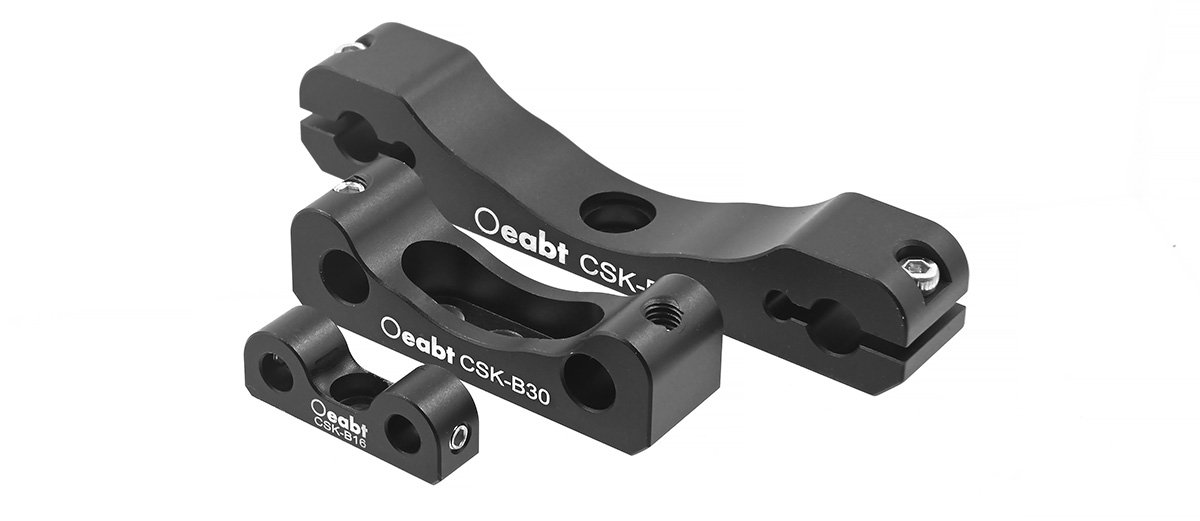

CSK-B Series DropIn Mounting Brackets

Product Description

• Clamp brackets for supporting cage assemblies with posts
• Suitable for 16 mm, 30 mm, and 60 mm cage systems
• Flexure locking design; secures cage rods via top side screws
• Countersunk hole for mounting Ø12 mm posts

The mounting bracket attaches cage assemblies to Ø12 mm posts. Its lowprofile design is ideal for integrating 16/30/60 mm cage systems into optomechanical setups.



Model	CSK-B16	CSK-B30	CSK-B60
Dimensions	25.0×6.4×9.0 mm	44.5×12.7×13.4 mm	76.2×12.7×14.0 mm
Through-Hole Spacing	16 mm	30 mm	60 mm
Countersink Type	1×M3	3×M4	1×M4
Weight	2.5 g	9.5 g	23.2 g
Material	7075 Aluminum Alloy	7075 Aluminum Alloy	7075 Aluminum Alloy



Technical Description

• The mounting bracket attaches cage assemblies to Ø12 mm posts. Its low-profile design is ideal for integrating 16/30/60 mm cage systems into optomechanical assemblies. The central recess provides clearance for SM1/SM2 sleeves.Note: This bracket cannot be used directly below SM05 lens sleeves.

(2) First mount the bracket onto two cage rods and secure the rods using the top set screws. Then mount the cage system to the post via the countersunk hole.

Assembly

Application Examples

Engineering Drawings

CSK-B60 Engineering Drawing

CSK-B30 Engineering Drawing

CSK-B16 Engineering Drawing
