Name: CSH Series Sectional Cage Plates
SKU: 4671
Availability: InStock

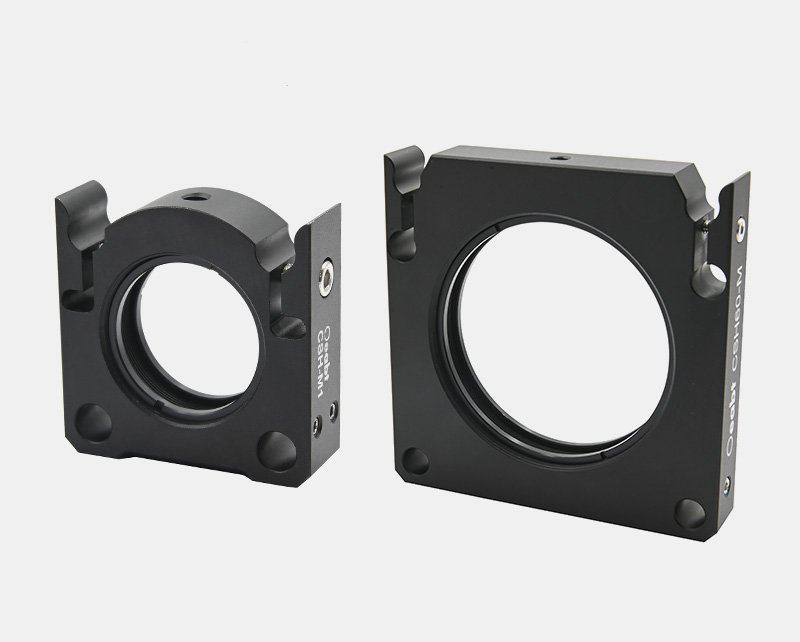

CSH Series Sectional Cage Plates

Price range: $30.40 through $44.80

Product Description

Flexible lock design for a fully detachable cage plate assembly
Compatible with Ø6mm cage rods
CSH-M1 compatible with 30mm cage systems; CSH60-M compatible with 60mm cage systems
2 retaining rings included
M4 threaded holes at the bottom for easy connecting rod installation

Enables quick disassembly and replacement of an entire section of a cage system (including components and corresponding cage rods) as an independent module without affecting other system components.

Model	CSH-M1	CSH60-M
Specifications	40.640.612.7mm	71.171.112.7mm
Central Aperture	SM1 (1.035”-40)	SM2 (2.035”-40)
Compatible Cage System	4 positions of Ø6.02mm, 30mm spacing	4 positions of Ø6.02mm, 60mm spacing
Weight	30.0g	95.2g
Threaded Hole Type	2 positions of M4	2 positions of M4
Material	7075 Aluminum Alloy	7075 Aluminum Alloy

Technical Description

(1) Different from through-type cage plates, this cage plate features a flexible cam lock design that allows direct removal from the direction perpendicular to the cage rods, thereby releasing all cage rods at this position and the components mounted on them to form an independently operable “cage section” module. Users can pre-align optical components on another identical cage section and realize quick replacement without disassembling the entire optical path.

(2) The CSH-M1 is equipped with SM1 female thread at the center and compatible with 30mm cage systems; the CSH60-M is equipped with SM2 female thread at the center, compatible with 60mm cage systems and PCM series Ø6mm cage rods.

(3) Both models come with 2 fixing retaining rings for mounting optical components. M4 threaded holes are provided on the top and bottom of the cage plates for mounting on Ø1/2-inch connecting rods.
