CSA2-V Series Ø2 Inch Viewing Tube

Product Description

• Enables easy access and operation of optical elements without disassembly.
• Features a 360° rotatable dustproof sliding cover to protect optical elements.
• Compatible with 60 mm cage systems; stackable design for building multi-component optical systems.

These lens tubes are ideal for constructing compact optical systems with light-shielded light paths. The CSA2V series has two open access slots, allowing simple and fast setup of complex optical assemblies and adjustment of optical elements without disassembly.



Common Parameters
Diameter	Ø59.7 mm
Thread Type	SM2 (2.035”-40) internal and external thread
Material	7075 Aluminum Alloy



Model	Specifications

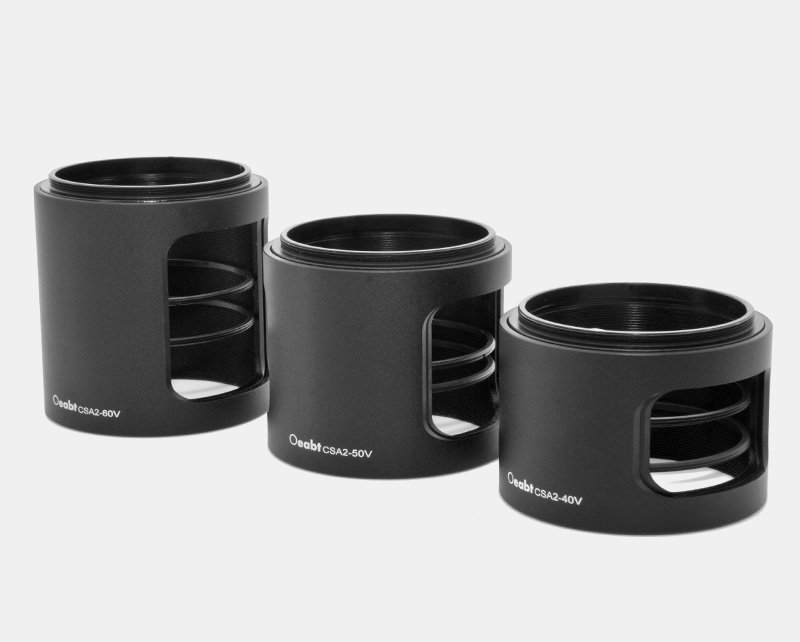

CSA2-40V	Dimensions: Ø59.7×43.8 mm; Tube body height: 40 mm; Weight: 60.1 g
CSA2-50V	Dimensions: Ø59.7×53.8 mm; Tube body height: 50 mm; Weight: 69.0 g
CSA2-60V	Dimensions: Ø59.7×63.8 mm; Tube body height: 60 mm; Weight: 79.8 g

Technical Description

These lens tubes are ideal for building compact optical systems with lightshielded paths. The CSA2V series features two open access slots for quick, easy setup of complex optical assemblies, allowing optical element adjustment without disassembly. Mount the optical element to the desired depth using the supplied 2×CSK4 retaining rings, then secure with the second ring.

The lens tube includes a 360° rotatable sliding cover that can be opened or closed from any direction. It blocks stray light and prevents dust and contamination.

Optical elements can be manually adjusted through the side access slots without disassembly. No retaining ring wrench is required for convenient operation.



One end of the tube has a 3.8 mm external thread for direct stackable connection between tubes. It also mates directly with SM2 (2.035”40) threaded components, providing flexibility for complex optomechanical setups.

Assembly

Application Examples

Engineering Drawings

CSA2-V Engineering Drawing
