Constant Power Laser Diode Driver Board High Power Red Laser PCB Circuit Board Drive with TTL / Analog Circuit

Constant Power Laser Diode Driver Board High Power Red Laser PCB Circuit Board Drive with TTL / Analog Circuit

The circuit board is a precision component. After receiving the package, it supports 7 days without reason to return the product without opening the original package. After the original package is opened, no return is provided. After sale, please consider whether you have the ability to install it manually before purchasing. Do not purchase if you do not have the ability to install! Our company does not provide trial play/trial loan/trial service. Thank you for understanding!

Product information
Product Name: High Power Red Laser PCB Circuit Board

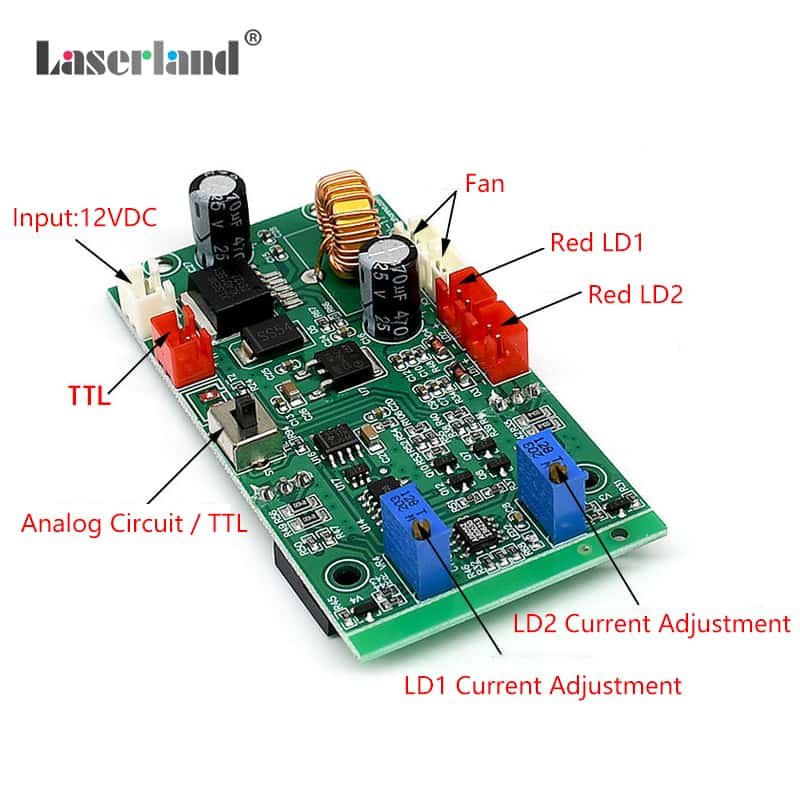

Terminal Type: PH2.5
Input Voltage: DC12V
Output Current: 100-350mA
Control Method: ACC constant current and constant voltage drive with TTL / Analog Circuit switching function

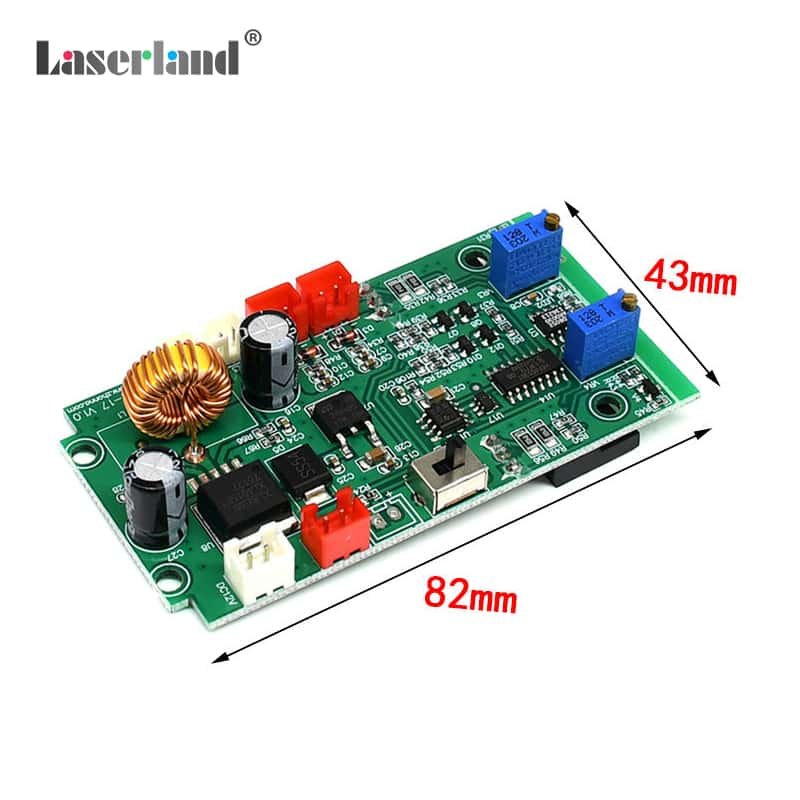

Length*Width : 82 * 43mm

Function:
1. Drive a 100mW-2000mW 635-650nm high-power laser
2. ACC constant current and constant voltage drive with TTL/Analog Circuit switching function
3. Voltage/current adjustable, input voltage 12V
4. This PCB is used for high-power lasers (red, green, and blue can be driven) . It can be adjusted according to the driving voltage and current specified in the laser LD specification to achieve constant current and voltage driving and stable operation.

Note: The laser diode needs to have good heat dissipation to ensure the normal operation, and the circuit will automatically control the light output power of the laser diode.
