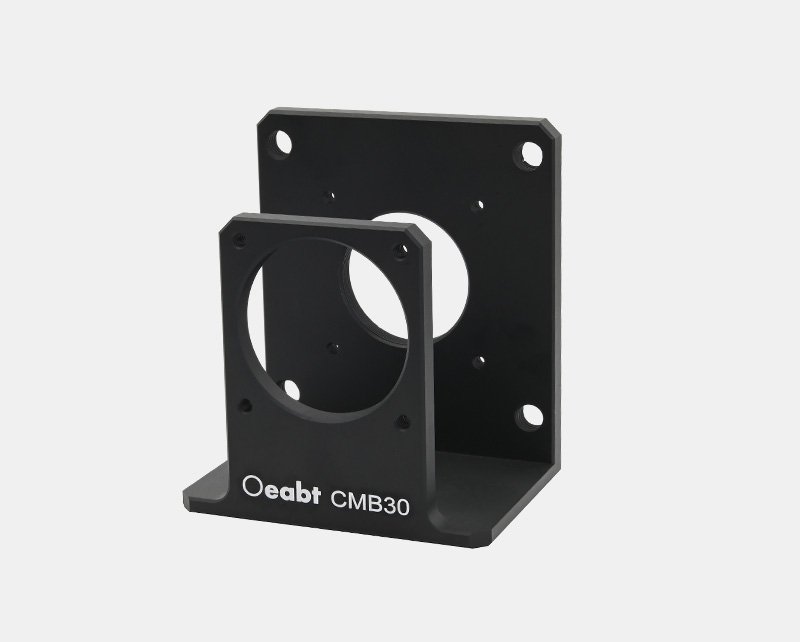

CMB30 Linear Stage Vertical Cage Mount

Product Description

• Vertically integrates linear stages with 50mm mounting spacing into cage systems
• Ideal for rotation stages with light-passing holes, enabling direct positioning in the optical path
• Compatible with 30mm cage systems
• Works with Ø1 inch lens sleeve series

This vertical mount enables the vertical integration of linear stages with 50mm mounting spacing into 30mm cage systems.

Technical Description

(1) The vertical mount vertically integrates linear stages with 50mm mounting spacing into 30mm cage systems. It is particularly suitable for rotation stages with SM1 threaded holes or light-passing holes, allowing the precise direct positioning of the rotation stage in the optical path.

(2) The mount features a double-sided interface design: one side is equipped with an SM1 threaded hole, and the other side has a Ø32mm through-hole, which allows an SM1 lens sleeve to pass through the mount and connect to the linear stage, ensuring an unobstructed optical path. In addition, both sides of the mount are drilled with 4-40 threaded holes, compatible with the installation of 30mm cage components. This allows easy expansion into more complex optical systems to meet diverse experimental requirements.

Assembly

Application Examples

Engineering Drawings

CMB30 Engineering Drawing
