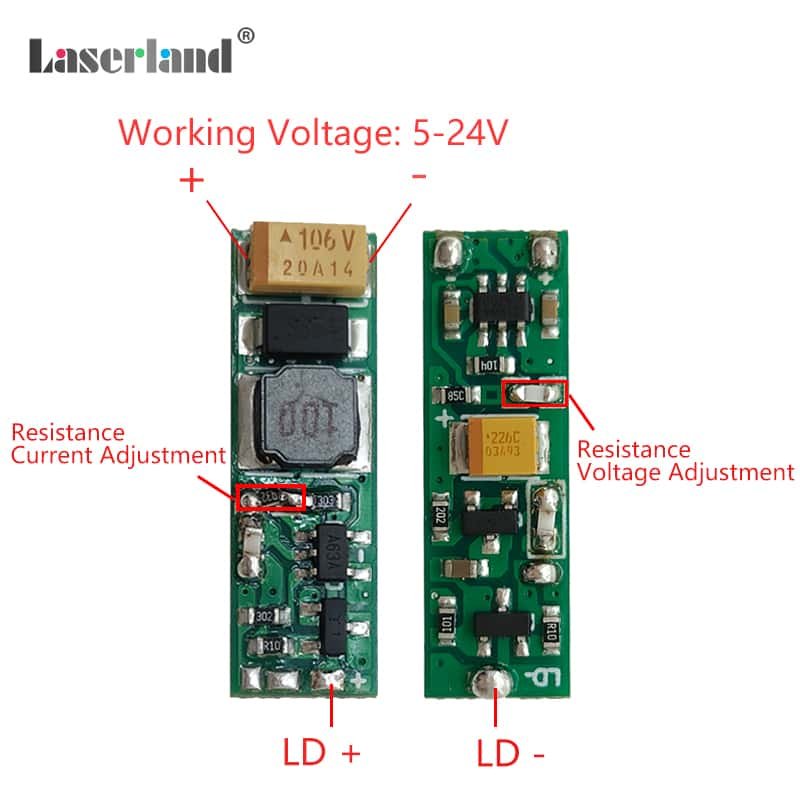

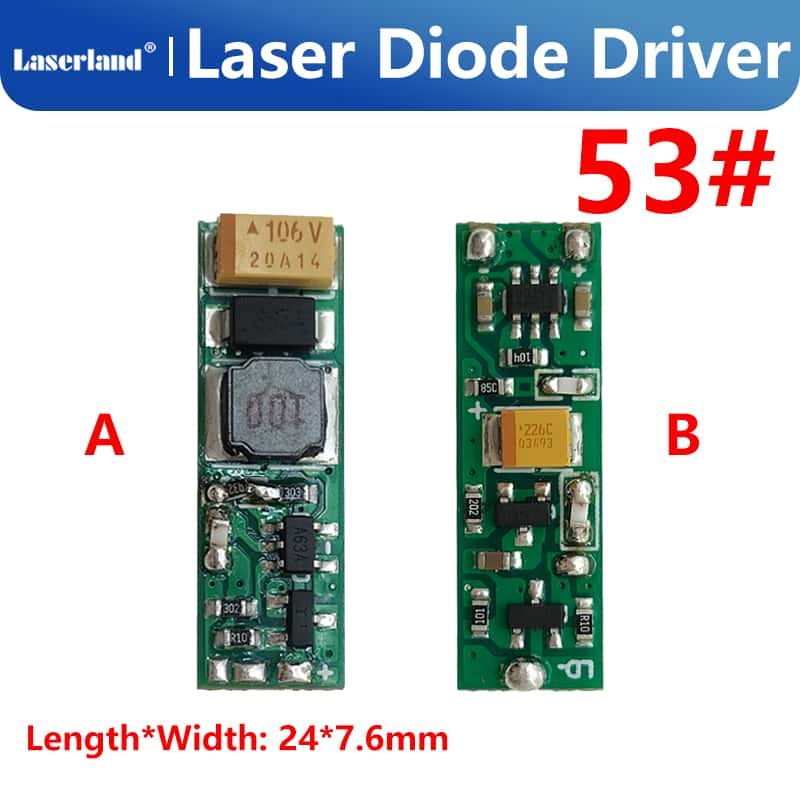

Constant Current Laser Driver Board 5-24V 1A High-power ACC Board
Suitable Laser Wavelength (nm): 400-980nm
Maximum Working Current (mA):<1000mA; Adjust as needed
Working Voltage (V): 5-24V

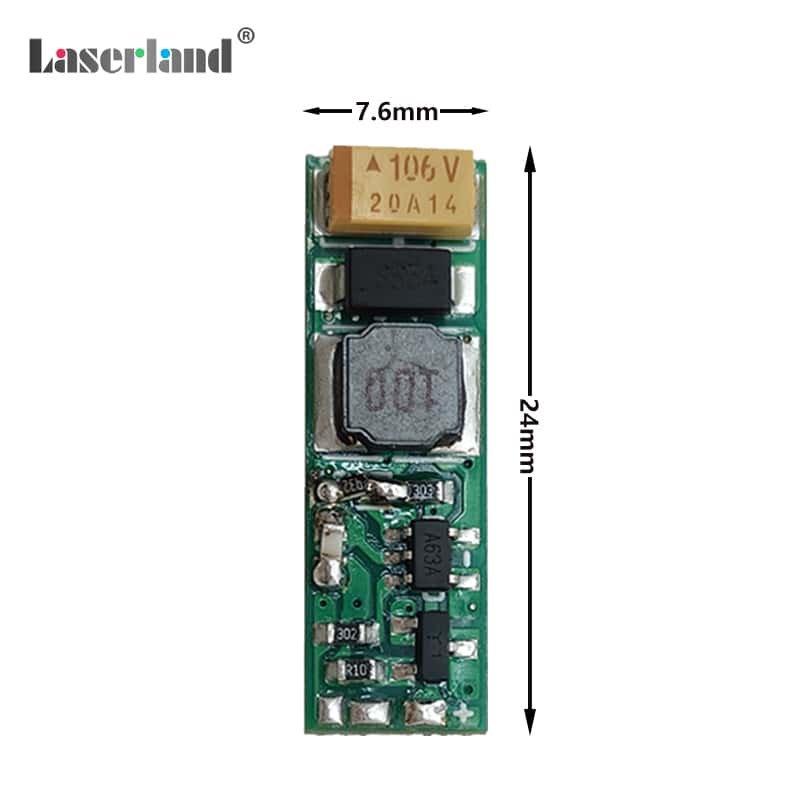

Length*Width(mm): 24 * 7.6mm

Application:
Suitable for laser diode with or without PD, 405NM120MW; 450NM80MW; 515NM 30MW; 520NM 50MW; 635NM, 650NM 5MW, 10MW, 30MW, 40MW; 660NM30/80/100/200MW; 780NM5/10/50/100/120/150MW; 808NM 200MW, 300MW, 500MW; 850NM 5~500MW; 980NM 50, 100, 200MW, 500MW, etc., APC and ACC working modes.

Functional features:
APC working with constant power under voltage fluctuations; It can also operate in ACC mode (For LD without PD, the optical output power is controlled by controlling the current of the LD).

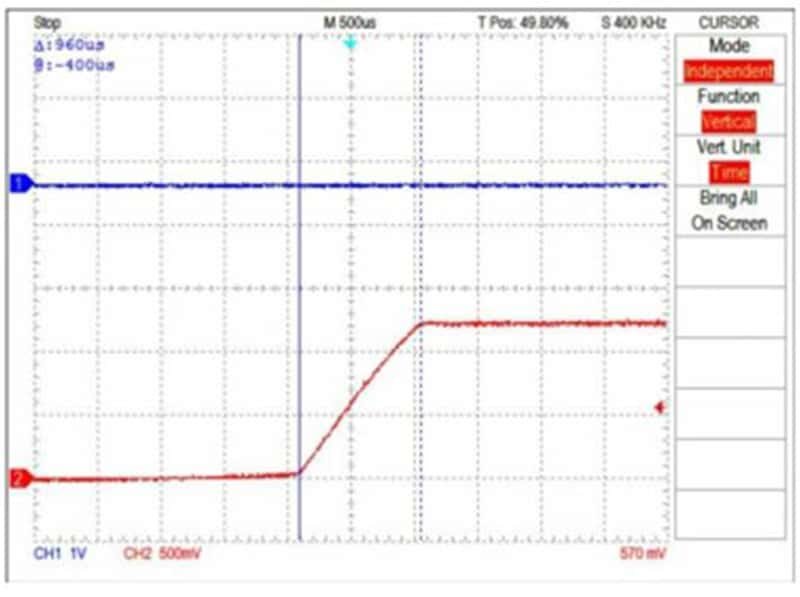

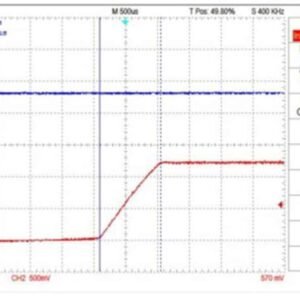

Waveform of optical power:
