3350 520nm 100mW Green Dot Laser Module Long Duty 12VDC TTL

3350 520nm 100mW Green Dot Laser Module Long Duty 12VDC TTL

​Wavelength: 520nm
Output: 100mw
​Working Current: <300mA
Divergence : 0.1-2mrad
Working voltage: DC 12V
Working temperature: +10~+35 centigrade
Dot diameter: <25mm at 10 meters
Duty cycle: 30 minutes on, 5 minutes off
Size: 30mm×30mmX50mm

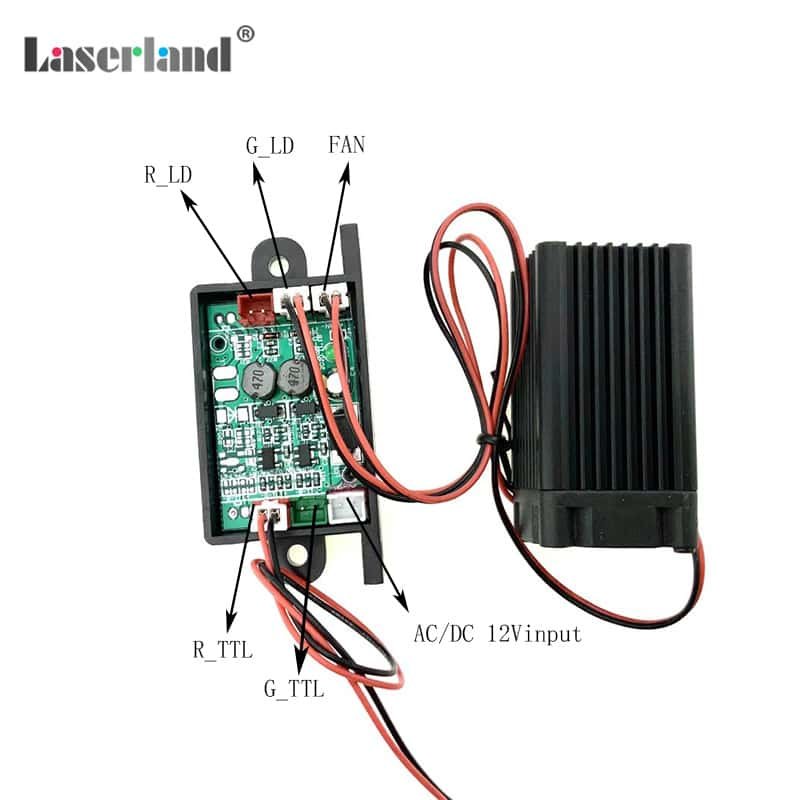

The wire to connect power input supply and TTL may not included ( if you do not know how to add the power supply, please feel free to contact me)

Note:
only for professionals
The modules are tested and the output power are measured by laser power meter before sending out.
Please don’t compare the power of this one with a none-measured laser.
If you doubt the output, please have the laser you recieved checked by laser power meter.
If there is any problem, please feel free to contact us. We will solve the problem asap.
for avoiding laser burnt out, we have default set the output on 90mw, there is a resistor on the driver of the lasre, you can adjust the input current to increase the output of it. but 120mw max is recommend. if the input current it too much, and the output can reach more than 120mw, but the laser may get soonly burnt out or the total working life must be reduced.
