S/N0002_3 Universal Joint

Product Description

• Adjustable freely within a 50° cone angle, with 3 fixed 90° adjustment positions.
• Screw-locking mechanism for angle locking and tension adjustment.
• M4/M6 mounting holes on the top and bottom.

The universal joint features a ball-joint mechanism, allowing rotational fixation at any angle within a 50° cone angle. Meanwhile, the mount body is equipped with 3 notches, enabling 90° positioned installation relative to the base.



Serial No.	S/N0002	S/N0003
Specification	Ø19.0*32.5mm	Ø25.4*40.5mm
Top mounting surface	Ø8.9mm	Ø11.1mm
Thread type	M4	M6
Weight	27.4g	54.3g
Material	7075 Aluminum Alloy	7075 Aluminum Alloy

Technical Description

The universal joint adopts a ball-joint mechanism, which can be rotated and fixed at any angle within a 50° cone angle. In addition, the mount body has 3 notches, allowing 90° positioned installation relative to the base.

The mount surface is equipped with 3 double-countersunk fixing screws. Use a 2mm/3mm wrench to fasten any one of the three locking screws to lock the position of the rotating ball, thus fixing the angle of the mounting surface. Using all three screws together also allows for tension adjustment.

The mount is fitted with M4 or M6 threaded mounting holes on the top and bottom, making it ideal for use with optical adjustment mounts and optical post assemblies.

Assembly

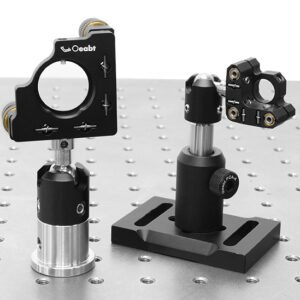

Application Examples

Engineering Drawings

SCA-X2 Engineering Drawing

SCA-X1 Engineering Drawing
